EPA1624 Datasheet - PCA ELECTRONICS

EPA1624 Inductor

Inductor ELECTRONICS INC. EPA1624 & EPA1624-LF www.DataSheet4U.com Used in Switch-Mode Power Supplies Add “-LF” after part number for Lead-Free UL 94V-0 Recognized Components UL 1446 Class B Insulation System 1.0A Max. D.C. Current Electrical Specifications @ 25°C Primary OCL (µH) @ 1 KHz, 0.1Vrms 315-385 0.20-0.27 DCR (Ω) Notes : 1. Lead Finish 2. Peak Solder Rating (per IPC/JEDEC-JESD22-B106-B) EPA1624 SnPb or SnAg 260°C 10 (+2/-0) seconds.

EPA1624_PCAELECTRONICS.pdf

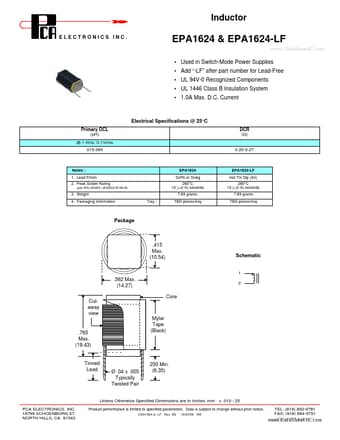

Preview of EPA1624 PDF

Datasheet Details

Part number:

EPA1624

Manufacturer:

PCA ELECTRONICS

File Size:

38.09 KB

Description:

Inductor.
