CS411299A - Dual&Single Diode

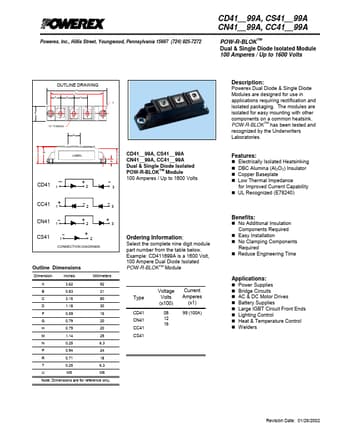

Powerex, Inc., Hillis Street, Youngwood, Pennsylvania 15697 (724) 925-7272 CD41__99A, CS41__99A CN41__99A, CC41__99A POW-R-BLOKTM Dual & Single Diode Isolated Module 100 Amperes / Up to 1600 Volts OUTLINE DRAWING A C F G H T B 1 2 3 "U" THREAD R M D LABEL CD41 ~ 1 + 2 P N 3 CD41__99A, CS41__99A CN41__99A, CC41__99A Dual & Single Diode Isolated POW-R-BLOKTM Module 100 Amperes / Up to 1600 Volts CC41 1 + - - 2 3 - CN41 1 - CS41 1 ++ 2 3 2 + CONNECTION DIAGRAMS Outl.

CS411299A Features

* T Electrically Isolated Heatsinking T DBC Alumina (Al2O3) Insulator T Copper Baseplate T Low Thermal Impedance for Improved Current Capability T UL Recognized (E78240) Benefits: T No Additional Insulation Components Required T Easy Installation T No Clamping Components Required T Reduce Engineering
