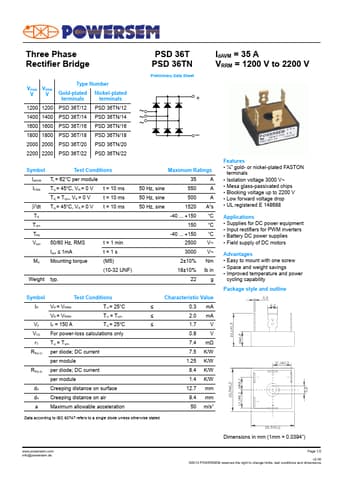

PSD36T - Three Phase Three Phase
Three Phase Rectifier Bridge VRSM VRRM VV Type Number Gold-plated Nickel-plated terminals terminals 1200 1200 PSD 36T/12 PSD 36TN/12 1400 1400 PSD 36T/14 PSD 36TN/14 1600 1600 PSD 36T/16 PSD 36TN/16 1800 1800 PSD 36T/18 PSD 36TN/18 2000 2000 PSD 36T/20 PSD 36TN/20 2200 2200 PSD 36T/22 PSD 36TN/22 Symbol Test Conditions IdAVM Tc = 62˚C per module IFSM Tvj = 45˚C, VR = 0 V t = 10 ms Tvj = Tvjm, VR = 0 V t = 10 ms ∫i2dt Tvj = 45˚C, VR = 0 V t = 10 ms Tvj Tvjm Tstg Visol 50/60
PSD36T Features
* ¼” gold- or nickel-plated FASTON terminals
* Isolation voltage 3000 V~
* Mesa glass-passivated chips
* Blocking voltage up to 2200 V
* Low forward voltage drop
* UL registered E 148688 Applications
* Supplies for DC power equipment
