PSD36 - HIGH POWERED TVS ARRAY

Product Overview

Protek Devices

Datasheet Details

Part number	PSD36
Manufacturer	Protek Devices
File Size	1.07 MB
Description	HIGH POWERED TVS ARRAY
Datasheet	PSD36 Datasheet
Note	This datasheet PDF includes multiple part numbers: PSD36, PSD03. Please refer to the document for exact specifications by model.

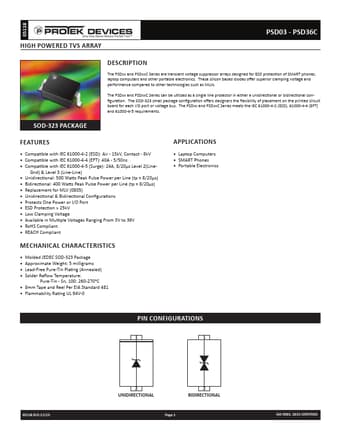

Additional preview pages of the PSD36 datasheet.

Product details

Description

The PSDxx and PSDxxC Series are transient voltage suppressor arrays designed for ESD protection of SMART phones, laptop computers and other portable electronics.

Features

Compatible with IEC 61000-4-2 (ESD): Air - 15kV, Contact - 8kV.
Compatible with IEC 61000-4-4 (EFT): 40A - 5/50ns.
Compatible with IEC 61000-4-5 (Surge): 24A, 8/20µs Level 2(Line- Gnd) & Level 3 (Line-Line).
Unidirectional: 500 Watts Peak Pulse Power per Line (tp = 8/20µs).
Bidirectional: 400 Watts Peak Pulse Power per Line (tp = 8/20µs).
Replacement for MLV (0805).
Unidirectional & Bidirectional Configurations.
