PSD36C, PSD03 - HIGH POWERED TVS ARRAY

PSD36C Description

05118 Only One Name Means ProTek’Tion™ HIGH POWERED TVS ARRAY PSD03 - PSD36C SOD-323 PACKAGE .
The PSDxx and PSDxxC Series are transient voltage suppressor arrays designed for ESD protection of SMART phones, laptop computers and other portable e.

PSD36C Features

* Compatible with IEC 61000-4-2 (ESD): Air - 15kV, Contact - 8kV
* Compatible with IEC 61000-4-4 (EFT): 40A - 5/50ns
* Compatible with IEC 61000-4-5 (Surge): 24A, 8/20µs Level 2(Line- Gnd) & Level 3 (Line-Line)
* Unidirectional: 500 Watts Peak Pulse Power per Line

PSD36C Applications

* Laptop Computers
* SMART Phones
* Portable Electronics PIN CONFIGURATIONS 11 05118.R15 11/13 2 UNIDIRECTIONAL 2 BIDIRECTIONAL Page 1 ISO 9001: 2015 CERTIFIED 05118 Only One Name Means ProTek’Tion™ TYPICAL DEVICE CHARACTERISTICS PSD03 - PSD36C MAXIMUM RATINGS @

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: PSD36C, PSD03. Please refer to the document for exact specifications by model.

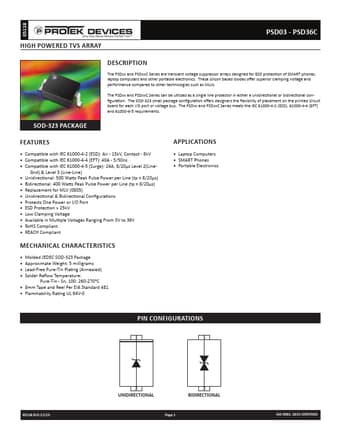

datasheet Preview Page 2 datasheet Preview Page 3
