PSF-16211, PSF-1628 - 10/100Base-T Single port Magnetics

Datasheet Details

Part number	PSF-16211, PSF-1628
Manufacturer	PPT
File Size	317.85 KB
Description	10/100Base-T Single port Magnetics
Datasheet	PSF-1628-PPT.pdf
Note	This datasheet PDF includes multiple part numbers: PSF-16211, PSF-1628. Please refer to the document for exact specifications by model.

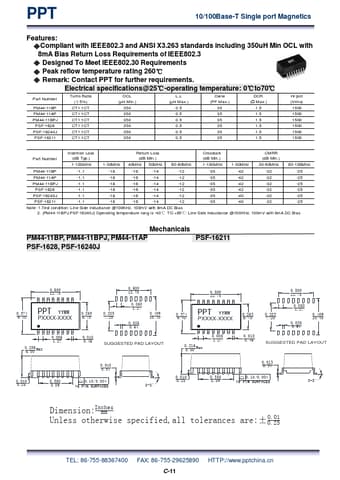

Compliant with IEEE802.3 and ANSI X3.263 standards including 350uH Min OCL with 8mA Bias Return Loss Requirements of IEEE802.3  Designed To Meet IEEE802.30 Requirements  Peak reflow temperature rating 260℃  Remark: Contact PPT for further requirements. Electrical specifications@25℃-operating temperature: 0℃to70℃ Part Number PM44-11BP PM44-11AP PM44-11BPJ PSF-1628 PSF-16240J PSF-16211 Turns Ratio (±5%) CT 1:1 CT CT 1:1 CT CT 1:1 CT CT 1:1 CT CT 1:1 CT CT 1:1 CT OCL (µH Min. ) 350 350 35.
