PSF-1628 Datasheet - PPT

PSF-1628 10/100Base-T Single port Magnetics

PSF-1628 Features

* Compliant with IEEE802.3 and ANSI X3.263 standards including 350uH Min OCL with 8mA Bias Return Loss Requirements of IEEE802.3  Designed To Meet IEEE802.30 Requirements  Peak reflow temperature rating 260℃  Remark: Contact PPT for further requirements. Electrical specifications@25℃-operating

PSF-1628-PPT.pdf

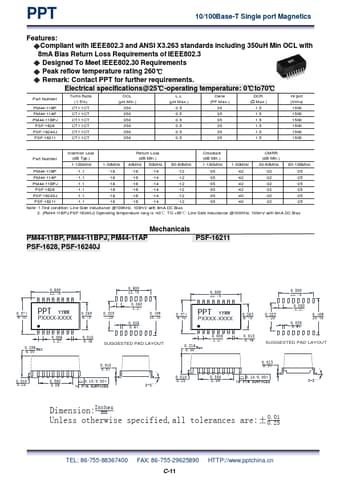

Preview of PSF-1628 PDF
PSF-1628 Datasheet Preview Page 2 PSF-1628 Datasheet Preview Page 3

Datasheet Details

Part number:

PSF-1628

Manufacturer:

PPT

File Size:

317.85 KB

Description:

10/100base-t single port magnetics.
