PT16940 - Serial-In Parallel-Out 12CH LED Driver

Datasheet Summary

Description

The PT16940 is a serial-in parallel-out controlled LED driver with 35V output voltage rating.

With the input of 3-line serial data, it turns the 12ch open drain output on/off.

Due to its compact size, it is optimal for small space.

Features

  • Open Drain Output.
  • 3-line Serial Control + Enable Signal.
  • Cascade Connection Compatible.
  • TSSOP-20 Package.
  • Internal 12ch Power Transistor.
  • Output Slew Rate Typical 20V/μs (for Low EMC Noise) BLOCK.

📥 Download Datasheet

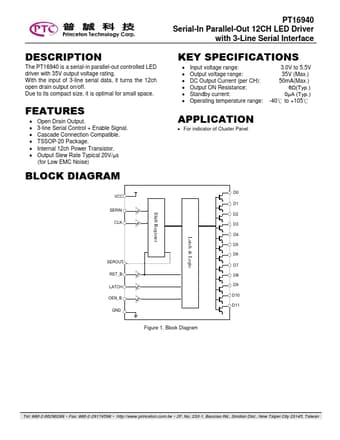

Datasheet preview – PT16940

Datasheet Details

Part number PT16940
Manufacturer PTC
File Size 220.67 KB
Description Serial-In Parallel-Out 12CH LED Driver
Datasheet download datasheet PT16940 Datasheet
Additional preview pages of the PT16940 datasheet.

📁 Similar Datasheet

  • PT163003B - Single 10Base-T/100Base-TX Transformer (YCL)
  • PT100 - Platinum Resistance Temperature Detector (RHOPOINT COMPONENTS)
  • Pt100 - Cable Sensor (Baumer)
  • Pt100 - Platinum Sensing Resistors (LABFACILITY)
  • PT100-xxxx - Power Toroids / Horizontal or Vertical Mount (American Precision)
  • PT1000 - Power Toroids-Horizontal or Vertical Mount (API Delevan)
  • Pt1000 - Cable Sensor (Baumer)
  • PT1000K - Multi-Standard Analog HD/SD Video Transmitter (Pixelplus)
  • PT1005-LCF11 - 850nm 10 Gb/s PIN photodetector (OEpic)
  • PT100F - 8 Amperes Tab Terminals (Electronic Devices)
Other Datasheets by PTC
  • PT16974 - Enhanced Linear Current Regulator and Controller
  • PT16976 - Automotive LED Current Controller
  • PT16103 - 480CH TFT LCD Source Driver
  • PT16512 - LCD Driver
  • PT16514 - LCD Driver
  • PT16528 - Automotive 18 x 4 LCD Segment Driver
  • PT16556 - LCD Driver
  • PT16557 - Duty LCD Display Drivers

Full PDF Text Transcription

Click to expand full text
DESCRIPTION The PT16940 is a serial-in parallel-out controlled LED driver with 35V output voltage rating. With the input of 3-line serial data, it turns the 12ch open drain output on/off. Due to its compact size, it is optimal for small space. FEATURES  Open Drain Output.  3-line Serial Control + Enable Signal.  Cascade Connection Compatible.  TSSOP-20 Package.  Internal 12ch Power Transistor.  Output Slew Rate Typical 20V/μs (for Low EMC Noise) BLOCK DIAGRAM VCC SERIN CLK SEROUT RST_B LATCH OEN_B GND Latch & Logic Shift Register PT16940 Serial-In Parallel-Out 12CH LED Driver with 3-Line Serial Interface KEY SPECIFICATIONS  Input voltage range: 3.0V to 5.5V  Output voltage range: 35V (Max.)  DC Output Current (per CH): 50mA(Max.)  Output ON Resistance: 6Ω(Typ.
