PT2811

3W Stereo Class-D Amplifier

PT2811 Features

* Supply Voltage: 3~6V

* 3W X 2 Class-D power amplifier (VDD=5V, RL=4Ω)

* 1 Fully-Differential input

* 3 Single-Ended audio inputs

* Programmable input gain from 0 to +15dB

* Bass and Treble control

* Master volume in 1dB/step from 0 to -79dB

* Advanced soft-mute and

PT2811 General Description

The PT2811 is an integrated 3W stereo Class-D amplifier with audio processor. The input selector supports 3 Single-Ended and 1 Fully-Differential input can be chose. The highly integration of the audio processor and class-D amplifier can further reduce external components BOM and provides better aud.

PT2811 Datasheet (200.68 KB)

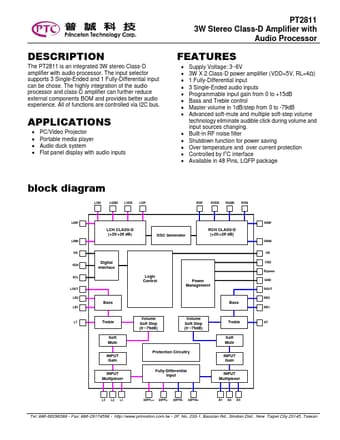

Preview of PT2811 PDF

Datasheet Details

Part number:

PT2811

Manufacturer:

PTC

File Size:

200.68 KB

Description:

3w stereo class-d amplifier.
