PT2831 - Class-D Audio Power Amplifier

PTC

PT2831 Datasheet Preview — Preview of PT2831 PDF

Datasheet Details

Part number	PT2831
Manufacturer	PTC
File Size	217.13 KB
Description	Class-D Audio Power Amplifier
Datasheet	PT2831-PTC.pdf

PT2831 Product details

Description

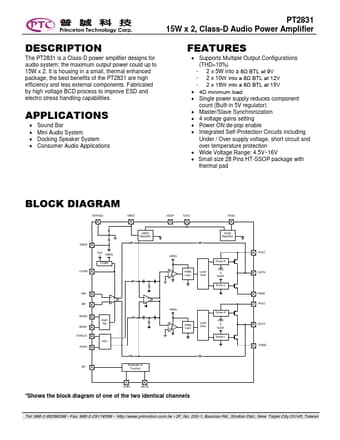

The PT2831 is a Class-D power amplifier designs for audio system; the maximum output power could up to 15W x 2. Sound Bar Mini Audio System Docking Speaker System Consumer Audio Applications

Features

Supports Multiple Output Configurations (THD=10%) - 2 x 5W into a 8Ω BTL at 9V - 2 x 10W into a 8Ω BTL at 12V - 2 x 15W into a 8Ω BTL at 15V.
4Ω minimum load.
Single power supply reduces component count (Built-in 5V regulator).
Master/Slave Synchronization.
4 voltage gains setting.
Power ON de-pop enable.
Integrated Self-Protection Circuits including Under / Over supply voltage, short circuit and over temperature protection.
Wide Voltage Range: 4.5V~16V.
