PT6324 Datasheet - PTC

PT6324 VFD Driver/Controller

Pin No. CLK I Clock input pin This pin reads serial data at the rising edge and outputs data at the falling edge. 1 Data input pin DIN I When this pin acts as input pin, serial data is inputted at the rising edge of the shift 2 clock (starting from the lower bit) Serial interface strobe pi.

PT6324 is a Vacuum Fluorescent Display (VFD) Controller driven on a 1/8 to 1/16 duty factor housed in 52-pin plastic LQFP. 24 segment output lines, 16 grid output lines, one display memory, control circuit, key scan circuit are all incorporated into a single chip to build a highly reliable peripheral device for a single chip micro computer. Serial data is fed to PT6324 via a three-line serial interface. Microcomputer peripheral devices Digital Audio/Video system: CD/MD/VCD/DV.

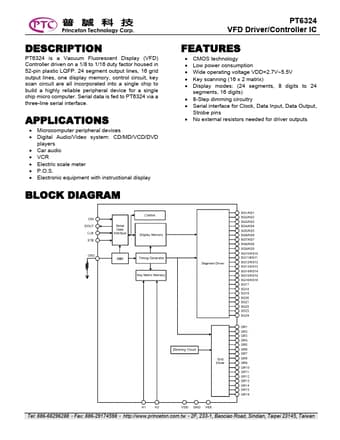

PT6324 Datasheet (608.05 KB)

PT6324 Datasheet Preview — Preview of PT6324 PDF

Datasheet Details

Part number:

PT6324

Manufacturer:

PTC

File Size:

608.05 KB

Description:

Vfd driver/controller.
