* combining 90% typical efficiency with open-collector on/ off control and adjustable output voltage. Quiescent current in the shutdown mode is less than 100µA. Standard Application VOADJ 12 PT6320VIN 2,3,4 9,10,11 1 C1 INH GND 5,6,7,8 + C2 Q1 C1 = Optional 1µF ceramic C2 = Required 100µF
PT6322
Power Trend
529.59 KB
3amp adjustable low voltage input integrated switching regulators.
For assistance or to order, call (800) 531-5782
PT6320
Series

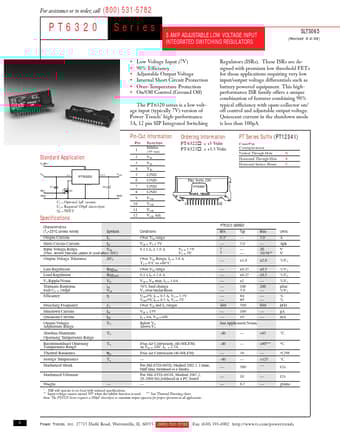

3 AMP ADJUSTABLE LOW VOLTAGE INPUT INTEGRATED SWITCHING REGULATORS
SLTS065
(Revised .
