PT6320 3AMP ADJUSTABLE LOW VOLTAGE INPUT INTEGRATED SWITCHING REGULATORS

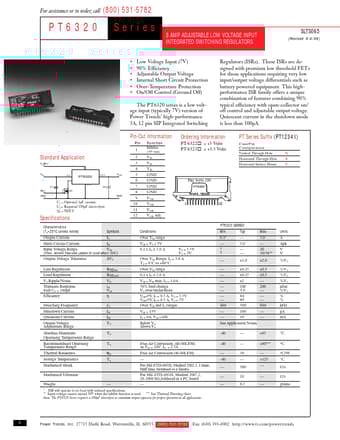

For assistance or to order, call (800) 531-5782 PT6320 Series 3 AMP ADJUSTABLE LOW VOLTAGE INPUT INTEGRATED SWITCHING REGULATORS SLTS065 (Revised 6/4/98) Low Voltage Input (7V) 90% Efficiency Adjustable Output Voltage Internal Short Circuit Protection Over-Temperature Protection On/Off Control (Ground Off) The PT6320 series is a low voltage input (typically 7V) version of Power Trends’ high-performance 3A, 12 pin SIP Integrated Swi.

PT6320 Features

* combining 90% typical efficiency with open-collector on/ off control and adjustable output voltage. Quiescent current in the shutdown mode is less than 100µA. Standard Application VOADJ 12 PT6320VIN 2,3,4 9,10,11 1 C1 INH GND 5,6,7,8 + C2 Q1 C1 = Optional 1µF ceramic C2 = Required 100µF

PT6320 Datasheet (529.59 KB)

PT6320 Datasheet Preview — Preview of PT6320 PDF

Datasheet Details

Part number:

PT6320

Manufacturer:

Power Trend

File Size:

529.59 KB

Description:

3amp adjustable low voltage input integrated switching regulators.
