P4C1981 - STATIC CMOS RAM

P4C1981 Description

P4C1981/P4C1981L, P4C1982/P4C1982L ULTRA HIGH SPEED 16K x 4 CMOS STATIC RAMS .
The P4C1981/L and P4C1982/L are 65,536-bit (16Kx4) ultra high-speed static RAMs similar to the P4C198, but with separate data I/O pins.

P4C1981 Features

* Full CMOS, 6T Cell High Speed (Equal Access and Cycle Times)
* 10/12/15/20/25 ns (Commercial)
* 12/15/20/25/35 ns (Industrial)
* 15/20/25/35/45 ns (Military) Low Power Operation (Commercial/Military) Output Enable and Dual Chip Enable Functions 5V ± 10% Power Supply Data Ret

📥 Download Datasheet

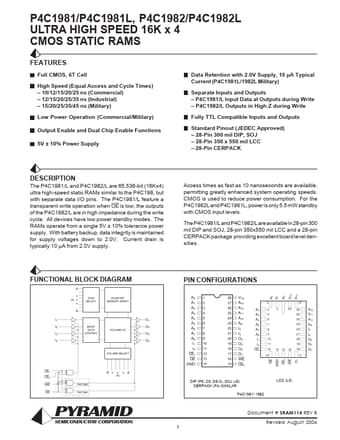

Preview of P4C1981 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
P4C1981
Manufacturer
PYRAMID
File Size
321.97 KB
Datasheet
P4C1981-PYRAMID.pdf
Description
STATIC CMOS RAM
