P4C1982 Datasheet, Ram, PYRAMID

P4C1982 Features

  • Ram Full CMOS, 6T Cell High Speed (Equal Access and Cycle Times)
      – 10/12/15/20/25 ns (Commercial)
      – 12/15/20/25/35 ns (Industrial)
      – 15/20/25

PDF File Details

Part number:

P4C1982

Manufacturer:

PYRAMID

File Size:

321.97kb

Download:

📄 Datasheet

Description:

Static cmos ram. The P4C1981/L and P4C1982/L are 65,536-bit (16Kx4) ultra high-speed static RAMs similar to the P4C198, but with separate data I/O pin

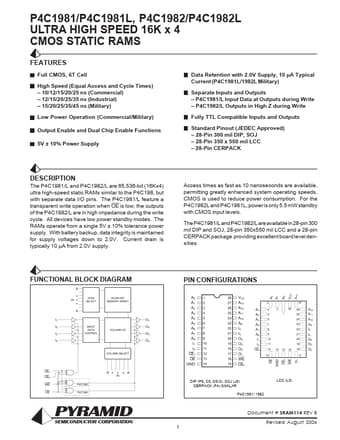

Datasheet Preview: P4C1982 📥 Download PDF (321.97kb)
Page 2 of P4C1982 Page 3 of P4C1982
