SB120 - 1 AMPERE SCHOTTKY BARRIER RECTIFIERS

SB120 Description

DATA SHEET SB120~SB1100 1 AMPERE SCHOTTKY BARRIER RECTIFIERS VOLTAGE 50 to 100 Volts .

SB120 Features

* 1.0 ( 25.4 ) MIN. CURRENT - 1.0 Ampere DO-41 Unit: inch ( mm )
* Plastic package has Underwriters Laboratory Flammability Classification 94V-O utilizing Flame Retardant Epoxy Molding Compound.
* 1 ampere operation at TA=75°C with no thermal runaway.
* Exceeds environmenta

SB120 Applications

* . .034 ( .86 ) .028 ( .71 ) MECHANICAL DATA Terminals: Axial leads, solderable per MIL-STD-202,Method 208 Polarity: Color band denotes cathode Mounting Position: Any Weight: 0.012 ounces, 0.34grams 1.0 ( 25.4 ) MIN. .205(5.2) .160(4.1) Case: DO-41 Molded plastic .107 ( 2.7 ) .080 ( 2.0 ) MAXIM

📥 Download Datasheet

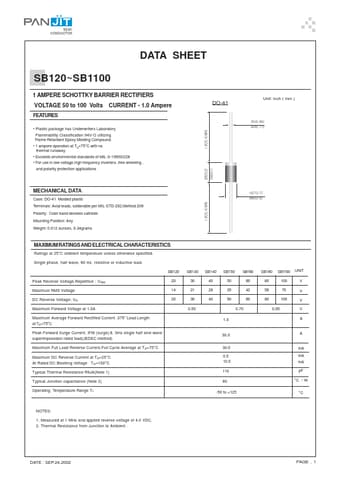

Preview of SB120 PDF
datasheet Preview Page 2

Datasheet Details

Part number
SB120
Manufacturer
Pan Jit International Inc.
File Size
45.63 KB
Datasheet
SB120_PanJitInternationalInc..pdf
Description
1 AMPERE SCHOTTKY BARRIER RECTIFIERS
