SB120-05H - 40V/ 1.1A Rectifier

SB120-05H Description

Ordering number :EN1981A SB120-05H Schottky Barrier Diode (Twin Type * Cathode Common) 50V, 12A Rectifier Applications * High frequency rect.

SB120-05H Features

* Low forward voltage (VF max=0.55V).
* Fast reverse recovery time (trr max=70ns).
* Low switching noise.
* Low leakage current and high reliability due to highly reliable planar structure. C:Cathode A:Anode SANYO:TO-3PB Specifications Absolute Maximum Ratings at Ta = 25˚C Paramete

📥 Download Datasheet

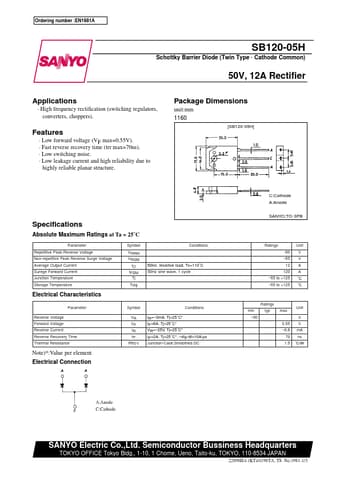

Preview of SB120-05H PDF
