SB3050CT, SCHOTTKY BARRIER RECTIFIERS

DATA SHEET SB3020CT~SB3060CT SCHOTTKY BARRIER RECTIFIERS VOLTAGE- 20 to 60 Volts CURRENT - 30.0 Ampere Reconfgnized File #E228882 .

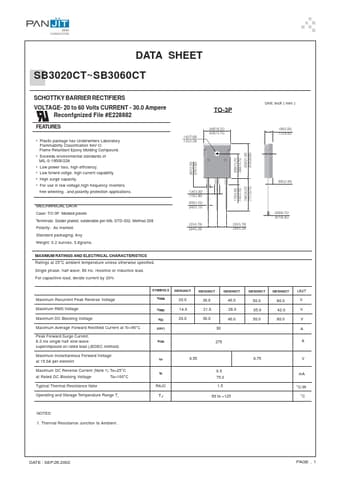

datasheet Preview Page 1 from Datasheet4u.com

SB3050CT_PanJitInternationalInc..pdf

SB3050CT Datasheet Preview — Preview of SB3050CT PDF

Datasheet Details

Part number:

SB3050CT

Manufacturer:

Pan Jit International Inc.

File Size:

43.39 KB

Description:

SCHOTTKY BARRIER RECTIFIERS

Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-O. Flame Retardant Epoxy Molding Compound.
* Exceeds environmental standards of MIL-S-19500/228
* Low power loss, high efficiency.
* Low forwrd voltge, high current capability
* High

Applications

* .126(3.20) .110(2.80) Unit: inch ( mm ) TO-3P .640(16.25) .620(15.75) .199(5.05) .175(4.45) .142(3.60) .125(3.20) .087(2.20) .070(1.80) .600(15.25) .580(14.75) .839(21.30) .819(20.80) MECHANICAL DATA Case: TO-3P Molded plastic Terminals: Solder plated, solderable per MIL-STD-202, Method 208
