SB650FCT - ISOLATION SCHOTTKY BARRIER RECTIFIERS

SB650FCT Description

DATA SHEET SB620FCT~SB660FCT ISOLATION SCHOTTKY BARRIER RECTIFIERS VOLTAGE 20 to 60 Volts .

SB650FCT Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-O utilizing Flame Retardant Epoxy Molding Compound.
* Exceeds environmental standards of MILS-19500/228
* Low power loss, high efficiency.
* Low forwrd voltge, high current capability

SB650FCT Applications

* .161(4.1) MAX .543(13.8) .512(13.0) CURRENT - 6 Ampere .112(2.85) .100(2.55) ITO-220AB .272(6.9) .248(6.3) Unit: inch ( mm ) .406(10.3) MAX .134(3.4) .118(3.0) .189(4.8)MAX .130(3.3)MAX .606(15.4) .583(14.8) .071(1.8) MAX .055(1.4) MAX .114(2.9) .098(2.5) .032(.8) MAX MECHANICAL DATA Case:

📥 Download Datasheet

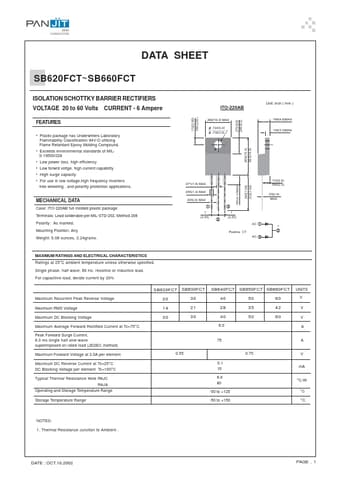

Preview of SB650FCT PDF
datasheet Preview Page 2

Datasheet Details

Part number
SB650FCT
Manufacturer
Pan Jit International Inc.
File Size
92.85 KB
Datasheet
SB650FCT_PanJitInternationalInc..pdf
Description
ISOLATION SCHOTTKY BARRIER RECTIFIERS
