BAT721C SCHOTTKY BARRIER (DOUBLE) DIODES

BAT721C Description

BAT721C / BAT721S SCHOTTKY BARRIER (DOUBLE) DIODES VOLTAGE 40 Volt CURRENT 200 mA .

BAT721C Features

* Ultra high switching speed
* Low forward voltage
* Guard ring protected
* Small plastic SMD package
* Ultra high-speed switching
* Voltage clamping
* Protection circuits
* Lead free in compliance with EU RoHS 2011/65/EU directive

BAT721C Applications

* shown on the herein document are examples of standard use and operation. Customers are responsible in comprehending the suitable use in particular applications. Panjit International Inc. makes no representation or warranty that such applications will be suitable for the specified use without further

📥 Download Datasheet

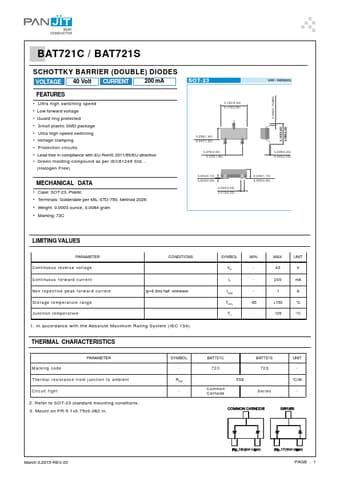

Preview of BAT721C PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BAT721C
Manufacturer
Pan Jit International
File Size
70.90 KB
Datasheet
BAT721C-PanJitInternational.pdf
Description
SCHOTTKY BARRIER (DOUBLE) DIODES
