BD880S, BD8200S - DPAK SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS

BD880S Description

BD840S~BD8200S DPAK SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS VOLTAGE .

BD880S Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-O

BD880S Applications

* Low profile package
* Built-in strain relief
* Low power loss, High efficiency
* High surge capacity
* In compliance with EU RoHS 2002/95/EC directives 40 to 200 Volts CURRENT 8 Ampere PRELIMINARY MECHANICALDATA
* Case: TO-252 molded plastic

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BD880S, BD8200S. Please refer to the document for exact specifications by model.

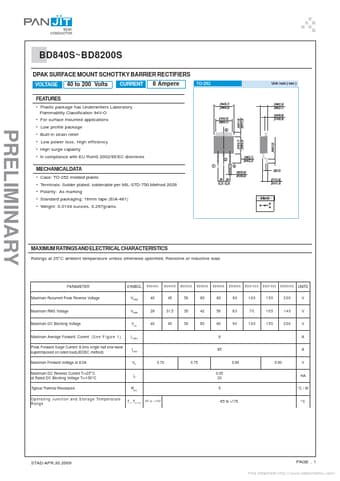

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BD880S, BD8200S
Manufacturer
Pan Jit International
File Size
137.13 KB
Datasheet
BD8200S_PanJitInternational.pdf
Description
DPAK SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS
Note
This datasheet PDF includes multiple part numbers: BD880S, BD8200S.
Please refer to the document for exact specifications by model.
