BD88200GUL Datasheet - Rohm

BD88200GUL, Coupling Capacitorless Headphone Amplifiers

Headphone Amplifiers Coupling Capacitorless Headphone Amplifiers BD88200GUL,BD88210GUL,BD88215GUL,BD88220GUL No.11102EAT05 *.
BD88xxxGUL is output coupling capacitorless headphone amplifier.

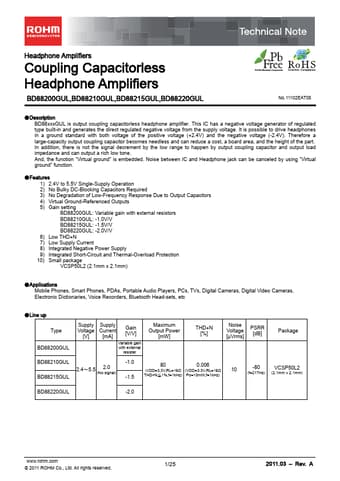

datasheet Preview Page 1 from Datasheet4u.com

BD88200GUL-Rohm.pdf

BD88200GUL Datasheet Preview — Preview of BD88200GUL PDF

Datasheet Details

Part number:

BD88200GUL

Manufacturer:

ROHM ↗

File Size:

627.74 KB

Description:

Coupling Capacitorless Headphone Amplifiers

Features

* 1) 2.4V to 5.5V Single-Supply Operation 2) No Bulky DC-Blocking Capacitors Required 3) No Degradation of Low-Frequency Response Due to Output Capacitors 4) Virtual Ground-Referenced Outputs 5) Gain setting BD88200GUL: Variable gain with external resistors BD88210GUL: -1.0V/V BD88215GUL: -1.5V/V BD88

Applications

* Mobile Phones, Smart Phones, PDAs, Portable Audio Players, PCs, TVs, Digital Cameras, Digital Video Cameras, Electronic Dictionaries, Voice Recorders, Bluetooth Head-sets, etc
* Line up Type BD88200GUL BD88210GUL BD88215GUL Supply Voltage [V] Supply Current [mA] Gain [V/V] Variable gain with
