BD88215GUL, BD88200GUL - Coupling Capacitorless Headphone Amplifiers

BD88215GUL Description

Headphone Amplifiers Coupling Capacitorless Headphone Amplifiers BD88200GUL,BD88210GUL,BD88215GUL,BD88220GUL No.11102EAT05 *.
BD88xxxGUL is output coupling capacitorless headphone amplifier.

BD88215GUL Features

* 1) 2.4V to 5.5V Single-Supply Operation 2) No Bulky DC-Blocking Capacitors Required 3) No Degradation of Low-Frequency Response Due to Output Capacitors 4) Virtual Ground-Referenced Outputs 5) Gain setting BD88200GUL: Variable gain with external resistors BD88210GUL: -1.0V/V BD88215GUL: -1.5V/V BD88

BD88215GUL Applications

* Mobile Phones, Smart Phones, PDAs, Portable Audio Players, PCs, TVs, Digital Cameras, Digital Video Cameras, Electronic Dictionaries, Voice Recorders, Bluetooth Head-sets, etc
* Line up Type BD88200GUL BD88210GUL BD88215GUL Supply Voltage [V] Supply Current [mA] Gain [V/V] Variable gain with

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BD88215GUL, BD88200GUL. Please refer to the document for exact specifications by model.

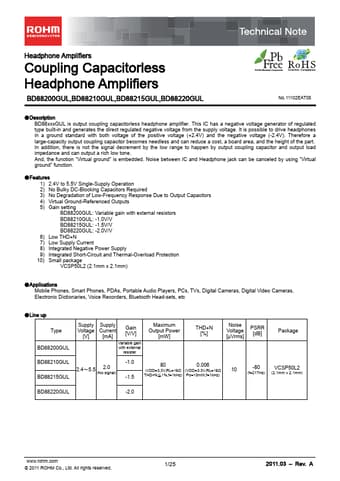

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BD88215GUL, BD88200GUL
Manufacturer
ROHM ↗
File Size
627.74 KB
Datasheet
BD88200GUL-Rohm.pdf
Description
Coupling Capacitorless Headphone Amplifiers
Note
This datasheet PDF includes multiple part numbers: BD88215GUL, BD88200GUL.
Please refer to the document for exact specifications by model.
