PJ04N03D - 25V N-Channel MOSFET

Pan Jit International

📥 Download Datasheet

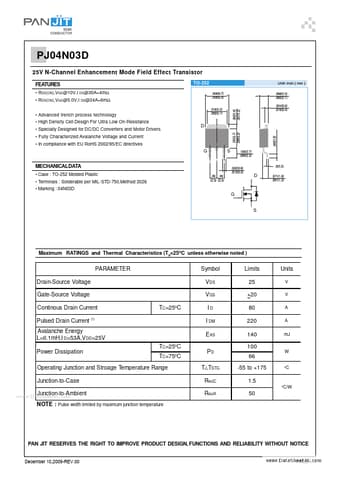

PJ04N03D Datasheet Preview — Preview of PJ04N03D PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	PJ04N03D
Manufacturer	Pan Jit International
File Size	272.76 KB
Description	25V N-Channel MOSFET
Datasheet	PJ04N03D_PanJitInternational.pdf

PJ04N03D Product details

Features

RDS(ON),VGS@10V,I DS@30A=4mΩ.
RDS(ON),VGS@5.0V,I DS@24A=6mΩ.
Advanced trench process technology.
High Density Cell Design For Uitra Low On-Resistance.
Specially Designed for DC/DC Converters and Motor Drivers.
Fully Characterized Avalanche Voltage and Current.
In compliance with EU RoHS 2002/95/EC directives G S D TO-252.
