PJ015BL Datasheet - UNIKC

PJ015BL MOSFET

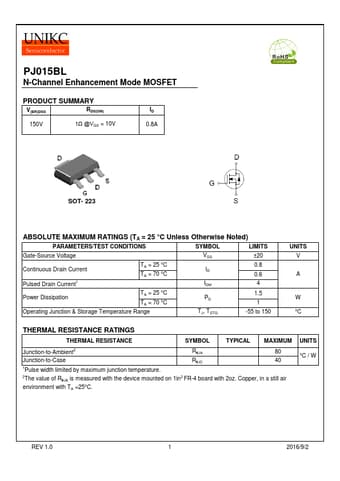

PJ015BL N-Channel Enhancement Mode MOSFET PRODUCT SUMMARY V(BR)DSS RDS(ON) 150V 1Ω @VGS = 10V ID 0.8A SOT- 223 ABSOLUTE MAXIMUM RATINGS (TA = 25 °C Unless Otherwise Noted) PARAMETERS/TEST CONDITIONS SYMBOL LIMITS Gate-Source Voltage VGS ±20 Continuous Drain Current Pulsed Drain Current1 TA = 25 °C TA = 70 °C ID IDM 0.8 0.6 4 Power Dissipation TA = 25 °C TA = 70 °C PD 1.5 1 Operating Junction & Storage Temperature Range TJ, TSTG -55 to 150 UNITS V A W °C THERMAL RESISTAN.

PJ015BL Datasheet (698.45 KB)
