PJSMS12C Datasheet PENTA TVS/ZENER ARRAY

Manufacturer: PanJit Semiconductor

Download the PJSMS12C datasheet PDF. This datasheet also includes the PJSMS05C variant, as both parts are published together in a single manufacturer document.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (PJSMS05C_PanJitInternational.pdf) that lists specifications for multiple related part numbers.

Overview

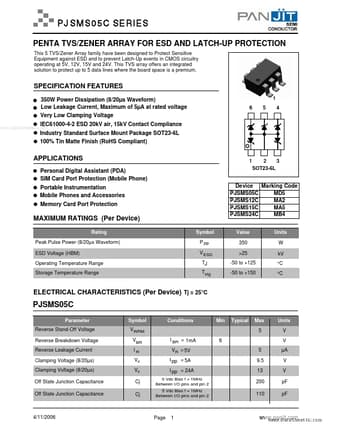

PJSMS05C SERIES PENTA TVS/ZENER ARRAY FOR ESD AND LATCH-UP PROTECTION This 5 TVS/Zener Array family have been designed to Protect Sensitive Equipment against ESD and to prevent Latch-Up events in CMOS circuitry operating at 5V, 12V, 15V and 24V.

This TVS array offers an integrated solution to protect up to 5 data lines where the board space is a premium.

Key Features

  • 350W Power Dissipation (8/20µs Waveform) Low Leakage Current, Maximum of 5µA at rated voltage Very Low Clamping Voltage www. DataSheet4U. com 1 6 5 4 IEC61000-4-2 ESD 20kV air, 15kV Contact Compliance Industry Standard Surface Mount Package SOT23-6L 100% Tin Matte Finish (RoHS Compliant).
