SD1020CS - DPAK SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

SD1020CS Description

SD1020CS Thru SD10100CS DPAK SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER VOLTAGE - 20 to 100 Volts CURRENT - 10.0 Amperes .

SD1020CS Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-O

SD1020CS Applications

* Low profile package
* Built-in strain relief
* Metal to silicon rectifier majority carrier conduction
* Low power loss, High efficiency
* High current capability, low VF
* High surge capacity
* For use in low voltage high frequency inverters,

📥 Download Datasheet

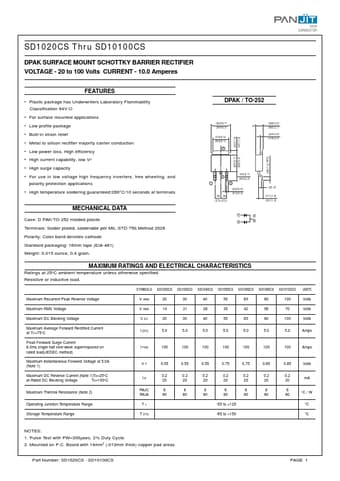

Preview of SD1020CS PDF
datasheet Preview Page 2

Datasheet Details

Part number
SD1020CS
Manufacturer
Pan Jit International
File Size
34.94 KB
Datasheet
SD1020CS_PanJitInternational.pdf
Description
DPAK SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
