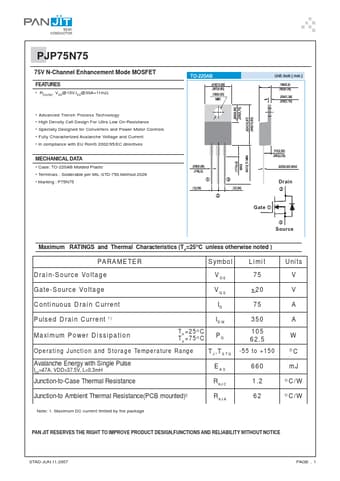

Part number:
P75N75
Manufacturer:
PanJit
File Size:
154.23 KB
Description:
75v n-channel mosfet.
* RDS(ON), VGS@10V,IDS@30A=11mΩ
* Advanced Trench Process Technology
* High Density Cell Design For Ultra Low On-Resistance
* Specially Designed for Converters and Power Motor Controls
* Fully Characterized Avalanche Voltage and Current
* In compliance
P75N75
PanJit
154.23 KB
75v n-channel mosfet.
