* Satisfactory linearity of forward current transfer ratio hFE
* High transition frequency (fT)
* Full-pack package which can be installed to the heat sink with one screw. 15.0±0.5 9.9±0.3 4.6±0.2 2.9±0.2 φ 3.2±0.1 13.7±0.2 4.2±0.2 Solder Dip 1.4±0.2 1.6±0.2 0.8±0.1 2.6
2SA2140
Panasonic Semiconductor
235.16 KB
Silicon pnp transistor.
www.DataSheet4U.com

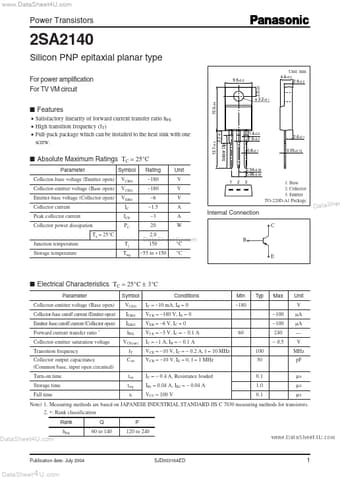

Power Transistors
2SA2140
Silicon PNP epitaxial planar type
Unit: mm
3.0±0.5
For power amplification For TV VM circuit
* Fe.
