2SC3506, Silicon NPN Transistor

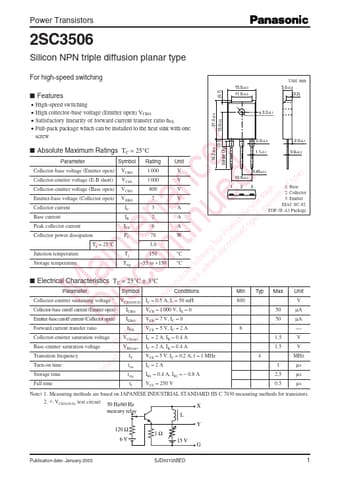

Power Transistors 2SC3506 Silicon NPN triple diffusion planar type For high-speed switching Unit: mm 15.0±0.3 5.0±0.2 (0.7) * .

datasheet Preview Page 1 from Datasheet4u.com

2SC3506_PanasonicSemiconductor.pdf

2SC3506 Datasheet Preview — Preview of 2SC3506 PDF

Datasheet Details

Part number:

2SC3506

Manufacturer:

Panasonic Semiconductor

File Size:

257.33 KB

Description:

Silicon NPN Transistor

Features

* 11.0±0.2 (3.2)
* High-speed switching 21.0±0.5 15.0±0.2
* High collector-base voltage (Emitter open) VCBO φ 3.2±0.1
* Satisfactory linearity of forward current transfer ratio hFE
* Full-pack package which can be installed to the heat sink with one screw 2.0±0
