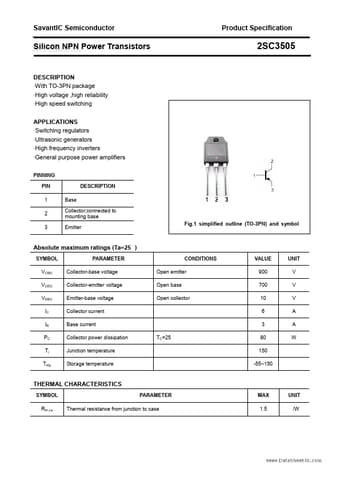

2SC3505 Datasheet, Transistor, SavantIC

PDF File Details

Part number:

2SC3505

Manufacturer:

SavantIC

File Size:

171.13kb

Download:

📄 Datasheet

Description:

Silicon power transistor.

With TO-3PN package

High voltage ,high reliability

High speed switching APPLICATIONS

Switching re

2SC3505 Application

• Applications
• Switching regulators
• Ultrasonic generators
• High frequency inverters
• General purpose power amplifier
