Part number:
2SC3503
Manufacturer:
Sanyo Semicon Device
File Size:
156.42 KB
Description:
Pnp/npn transistors.

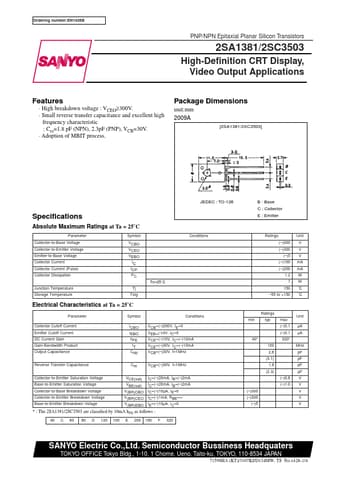

* Package Dimensions unit:mm 2009A [2SA1381/2SC3503]
* High breakdown voltage : VCEO≥300V.
* Small reverse transfer capacitance and excellent high frequency characteristic : Cre=1.8 pF (NPN), 2.3pF (PNP), VCB=30V.
* Adoption of MBIT process. JEDEC : TO-126 Specifications Absolute Maximu
2SC3503
Sanyo Semicon Device
156.42 KB
Pnp/npn transistors.
