* 3.8±0.2 90° 0.65±0.1 0.85±0.1 2.5±0.1 1.0±0.1 0.7±0.1 0.7±0.1 0.8C 0.8C s Absolute Maximum Ratings Parameter Collector to base voltage Collector to emitter voltage Emitter to base voltage Peak collector current Collector current Collector power dissipation Junction temperature Storage tempera
2SC4985
Panasonic Semiconductor
40.12 KB
Npn transistor.
Power Transistors

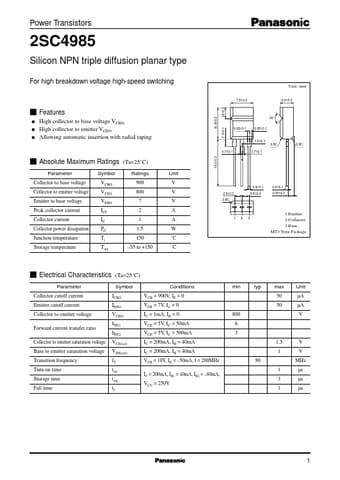

2SC4985
Silicon NPN triple diffusion planar type
For high breakdown voltage high-speed switching
7.5±0.2
Unit: mm
4.5±0.2
q q q
.
