AN7090FHQ

The AN7090FHQ is Peripheral analog IC for audio signal processing designed by Panasonic Semiconductor.

Product Overview

Panasonic Semiconductor

Datasheet Details

Part number	AN7090FHQ
Manufacturer	Panasonic Semiconductor
File Size	139.00 KB
Description	Peripheral analog IC for audio signal processing
Datasheet	AN7090FHQ_PanasonicSemiconductor.pdf

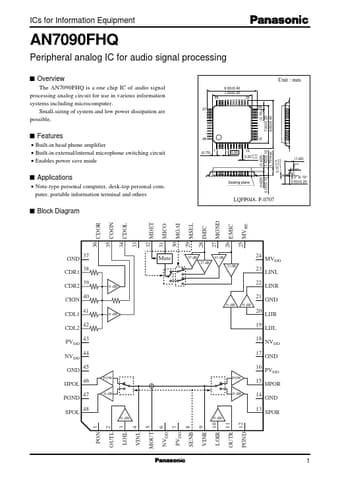

Additional preview pages of the AN7090FHQ datasheet.

Product details

Description

Pin No. 5VDD (power) +5VDD (power) Speaker enable VR-input R-channel Line-out input R-channel Line-out jack R-channel Power GND Speaker-out R-channel GND (power) Headphone-out R-channel +5VDD GND 5VDD Line-in jack L-channel Line-in jack R-channel GND Line-in output R-channel Line-in output L-channel Mic.

Features

Built-in head phone amplifier.
Built-in external/internal microphone switching circuit.
Enables power save mode 48 1 12 0.20+0.10.
0.05 13 (0.75) 0.50 (0.625) 1.40±0.10 1.70 max.
Note-type personal computer, desk-top personal computer, portable information terminal and others Seating plane LQFP048- P-0707 s Block Diagram MGND COGN MDET CDOR CDOL MGAI MICO MSEL MVRE IMIC EMIC 35 34 33 29 26 36 32 31 30 28 GND CDR1 CDR2 CIGN CDL1 CD.
