AN733 - 7-Element Graphic Equalizer IC for Hi-Fi

Panasonic Semiconductor

The AN733 by Panasonic Semiconductor is a 7-Element Graphic Equalizer IC for Hi-Fi. Below is the official datasheet preview.

📥 Download Datasheet

AN733 7-Element Graphic Equalizer IC for Hi-Fi by Panasonic Semiconductor - Datasheet Preview — Official preview page of the **AN733** 7-Element Graphic Equalizer IC for Hi-Fi datasheet (Panasonic Semiconductor).

Datasheet Details

Part number	AN733
Manufacturer	Panasonic Semiconductor
File Size	52.34 KB
Description	7-Element Graphic Equalizer IC for Hi-Fi
Datasheet	AN733_PanasonicSemiconductor.pdf

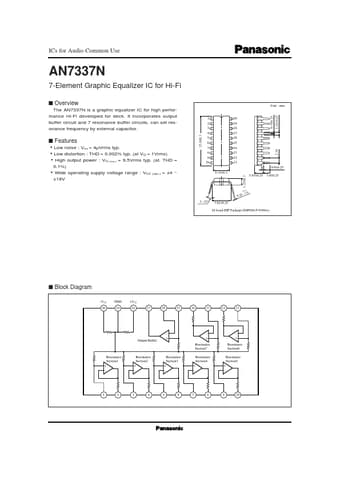

Additional preview pages of the AN733 datasheet.

AN733 Product details

Description

Pin No. VCC IN 16 2 1 2, 4, 6, 8, 10, 12, 14 Negative Feedback Center electric potential (GND) Resonance circuit negative feedback pin + VCC VCC IN 15 Non Inverting Input Center electric potential (GND) Output buffer circuit non-inverting input pin Center electric potential 33kΩ

Features

Low noise : Vno = 4µVrms typ.
Low distortion : THD = 0.002% typ. (at VO = 1Vrms).
High output power : VO (max. ) = 9.5Vrms typ. (at. THD =.
0.1%) Wide operating supply voltage range : VCC (opr. ) = ±4 ~ ±18V 25.0±0.3 3 ~15˚ 7.62±0.25 20-Lead DIP Package (DIP020-P-0300A) s Block Diagram.
VCC 20 GND 19 +VCC 18 17 16 15 14 13 12 11 Output Buffer.
+.
+ Resonance Section7.
+ Resonance Section6 Resonance Section5 +.
