AN7337NS

7-element graphic equalizer IC for Hi-Fi audio equipment

AN7337NS Features

* 0.15 1 10 0.3 0° to 10° Seating plane s Applications

* Mini-component stereo, system component stereo SOP020-P-0300B s Block Diagram

* VCC +VCC 18 17 GND 19 20 16 15 14 13 12 9 10 1 2 3 4 5 6 7 8 11 1 AN7337NS s Pin Descriptions Pin No. 1 2 3 4 5 6 7 8 9 10 I

AN7337NS General Description

Pin No. 1 2 3 4 5 6 7 8 9 10 In 1 NF 1 In 2 NF 2 In 3 NF 3 In 4 NF 4 In 5 NF 5 Description Pin No. 11 12 13 14 15 16 17 18 19 20 ICs for Audio Common Use Description In 6 NF 6 In 7 NF 7 Non-inverting input Inverting input Output + VCC GND

* VCC s Absolute Maximum Ratings Parameter Supply.

AN7337NS Datasheet (39.31 KB)

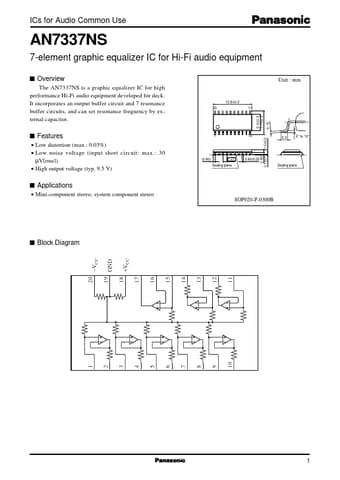

Preview of AN7337NS PDF

Datasheet Details

Part number:

AN7337NS

Manufacturer:

Panasonic Semiconductor

File Size:

39.31 KB

Description:

7-element graphic equalizer ic for hi-fi audio equipment.
ICs for Audio Common Use AN7337NS 7-element graphic equalizer IC for Hi-Fi audio equipment s Overview The AN7337NS is a graphic equalizer IC for high.
