AN7337

7-Element Graphic Equalizer IC for Hi-Fi

AN7337 Features

* Low noise : Vno = 4µVrms typ.

* Low distortion : THD = 0.002% typ. (at VO = 1Vrms)

* High output power : VO (max.) = 9.5Vrms typ. (at. THD =

* 0.1%) Wide operating supply voltage range : VCC (opr.) = ±4 ~ ±18V 25.0±0.3 3 ~15˚ 7.62±0.25 20-Lead DIP Package (DIP020

AN7337 General Description

Pin No. Pin Name Pin Voltage (V) Description ICs for Audio Common Use Equivalent Circuit 1 + VCC 1, 3, 5, 7, 9, 11, 13 Input Center electric potential (GND) Resonance circuit input pin

* VCC IN 16 2 1 2, 4, 6, 8, 10, 12, 14 Negative Feedback Center electric potential (GND) Reso.

AN7337 Datasheet (52.34 KB)

Preview of AN7337 PDF

Datasheet Details

Part number:

AN7337

Manufacturer:

Panasonic Semiconductor

File Size:

52.34 KB

Description:

7-element graphic equalizer ic for hi-fi.

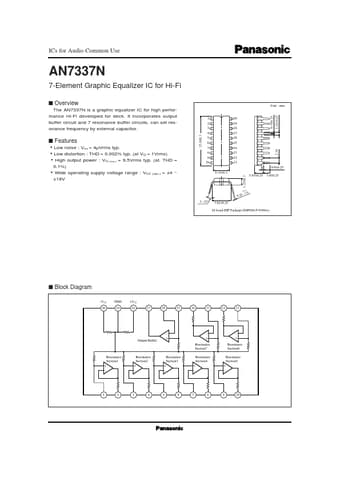

ICs for Audio Common Use AN7337N 7-Element Graphic Equalizer IC for Hi-Fi s Overview The AN7337N is a graphic equalizer IC for high performance Hi-Fi.
