AN7512 - BTL Audio-Power

Name: AN7512
SKU: AN7512-182342

Panasonic Semiconductor

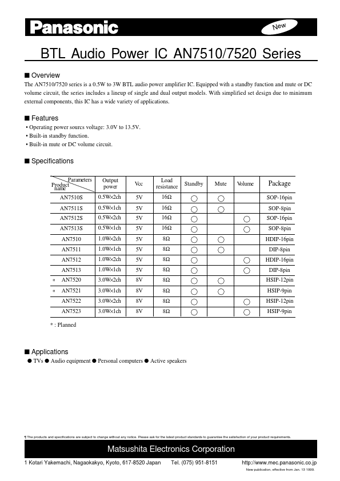

The AN7512 by Panasonic Semiconductor is a BTL Audio-Power. Below is the official datasheet preview.

Datasheet Details

Part number	AN7512
Manufacturer	Panasonic Semiconductor
File Size	278.57 KB
Description	BTL Audio-Power
Datasheet	AN7512_PanasonicSemiconductor.pdf
Additional preview pages of the AN7512 datasheet.

Pin No.

Operating power sourcs voltage: 3.0V to 13.5V.
Built-in standby function.
Built-in mute or DC volume circuit. s Specifications Parameters Product name AN7510S AN7511S AN7512S AN7513S AN7510 AN7511 AN7512 AN7513.
AN7520 AN7521 AN7522 AN7523.
: Planned Output power 0.5W×2ch 0.5W×1ch 0.5W×2ch 0.5W×1ch 1.0W×2ch 1.0W×1ch 1.0W×2ch 1.0W×1ch 3.0W×2ch 3.0W×1ch 3.0W×2ch 3.0W×1ch Vcc 5V 5V 5V 5V 5V 5V 5V 5V 8V 8V 8V 8V Load resistance 16Ω 16Ω 16Ω 16Ω 8Ω 8Ω.
