AN8011S - 2-channel step-down/ step-up/ or inverting use DC-DC converter controller

Name: AN8011S
SKU: AN8011S-182573

Panasonic Semiconductor

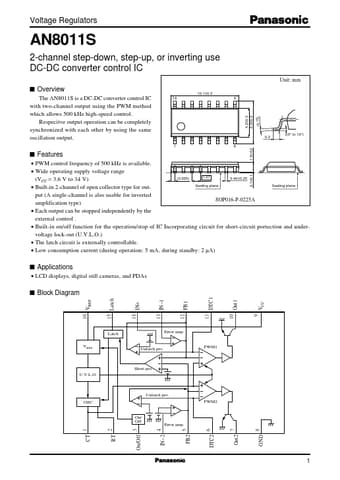

The AN8011S by Panasonic Semiconductor is a 2-channel step-down/ step-up/ or inverting use DC-DC converter controller. Below is the official datasheet preview.

📥 Download Datasheet

AN8011S 2-channel step-down/ step-up/ or inverting use DC-DC converter controller by Panasonic Semiconductor - Datasheet Preview — Official preview page of the **AN8011S** 2-channel step-down/ step-up/ or inverting use DC-DC converter controller datasheet (Panasonic Semiconductor).

Datasheet Details

Part number	AN8011S
Manufacturer	Panasonic Semiconductor
File Size	161.91 KB
Description	2-channel step-down/ step-up/ or inverting use DC-DC converter controller
Datasheet	AN8011S_PanasonicSemiconductor.pdf
Additional preview pages of the AN8011S datasheet.

AN8011S Product details

Description

Pin No.

Features

PWM control frequency of 500 kHz is available.
Wide operating supply voltage range 1.27 (0.605) 0.40±0.25 (VCC = 3.6 V to 34 V) Seating plane Seating plane.
Built-in 2-channel of open collector type for output (A single-channel is also usable for inverted SOP016-P-0225A amplification type).
Each output can be stopped independently by the external control.
Built-in on/off function for the operation/stop of IC Incorporating circuit for short-circui.
