AN8014 - Step-down/ step-up/ or inverting DC-DC converter controller

Name: AN8014
SKU: AN8014-182575

Panasonic Semiconductor

The AN8014 by Panasonic Semiconductor is a Step-down/ step-up/ or inverting DC-DC converter controller. Below is the official datasheet preview.

📥 Download Datasheet

AN8014 Step-down/ step-up/ or inverting DC-DC converter controller by Panasonic Semiconductor - Datasheet Preview — Official preview page of the **AN8014** Step-down/ step-up/ or inverting DC-DC converter controller datasheet (Panasonic Semiconductor).

Datasheet Details

Part number	AN8014
Manufacturer	Panasonic Semiconductor
File Size	151.96 KB
Description	Step-down/ step-up/ or inverting DC-DC converter controller
Datasheet	AN8014_PanasonicSemiconductor.pdf

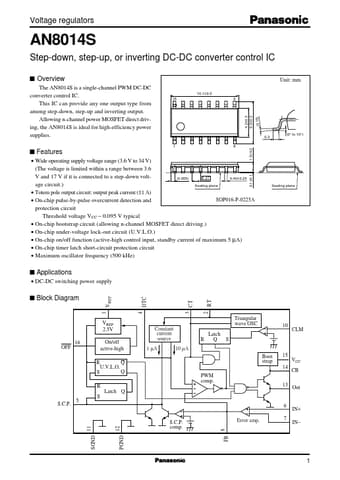

Additional preview pages of the AN8014 datasheet.

AN8014 Product details

Description

Pin No.

Features

Wide operating supply voltage range (3.6 V to 34 V) (The voltage is limited within a range between 3.6 V and 17 V if it is connected to a step-down volt1.27 (0.605) 0.40±0.25 age circuit. ) Seating plane.
Totem pole output circuit: output peak current (±1 A) SOP016-P-0225A.
On-chip pulse-by-pulse overcurrent detection and protection circuit Threshold voltage VCC.
0.095 V typical.
On-chip bootstrap circuit (allowing n-channel MOSFET direct driving. ).
