AN8013SH - Single-channel step-up or step-down DC-DC converter controller

Panasonic Semiconductor

The AN8013SH by Panasonic Semiconductor is a Single-channel step-up or step-down DC-DC converter controller. Below is the official datasheet preview.

📥 Download Datasheet

AN8013SH Single-channel step-up or step-down DC-DC converter controller by Panasonic Semiconductor - Datasheet Preview — Official preview page of the **AN8013SH** Single-channel step-up or step-down DC-DC converter controller datasheet (Panasonic Semiconductor).

Datasheet Details

Part number	AN8013SH
Manufacturer	Panasonic Semiconductor
File Size	125.93 KB
Description	Single-channel step-up or step-down DC-DC converter controller
Datasheet	AN8013SH_PanasonicSemiconductor.pdf

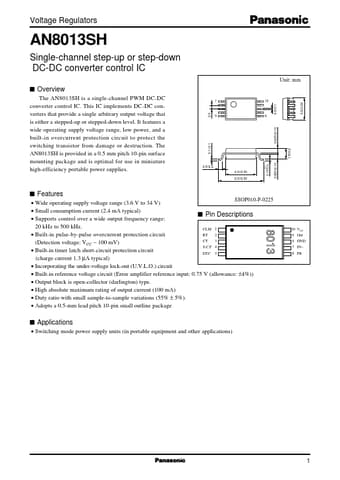

Additional preview pages of the AN8013SH datasheet.

AN8013SH Product details

Description

Supports control over a wide output frequency range: 20 kHz to 500 kHz. Built-in pulse-by-pulse overcurrent protection circuit 2 RT 3 CT (Detection voltage: VCC 100 mV) S.C.P. Built-in timer latch short-circuit protection circuit DTC 5 (charge current 1.3 µA typical) Incorporating the under-voltage lock-out (U.V.L.O.) circuit Built-in reference voltage circuit (Error amplifier reference input: 0.75 V (allowance: ±4%))

Features

a wide operating supply voltage range, low power, and a built-in overcurrent protection circuit to protect the switching transistor from damage or destruction. The AN8013SH is provided in a 0.5 mm pitch 10-pin surface mounting package and is optimal for use in miniature high-efficiency portable power supplies. 3.0±0.30 1.5±0.2 1 10 0.2±0.1 0.625±0.10 0.625±0.10 0.5 5 6 0.1±0.1 4.3±0.30 6.3±0.30 s Features.
Wide operating supply voltage range (3.6 V to 34 V).
Small consu.
