AN8041S

Liquid crystal backlight controller

AN8041S Features

* Operating supply voltage: 3.6 V to 34 V

* 1.27 0.40±0.25 (0.605)

* Totem pole output circuit: Output current of ±500 mA Seating plane

* Built-in bootstrap circuit

* N-channel power MOSFET can be directly driven SOP016-P-0225A

* Built-in two error amplif

AN8041S General Description

Pin No. Symbol 1 2 VREF RT Description Reference voltage output pin Pin for connecting oscillator timing resistor 3 CT Pin for connecting oscillator timing capacitor 4 5 DTC S.C.P. Dead-time control pin Pin for connecting the time constant setting capacitor for short-circuit protection 6 IN+1 Error.

AN8041S Datasheet (153.08 KB)

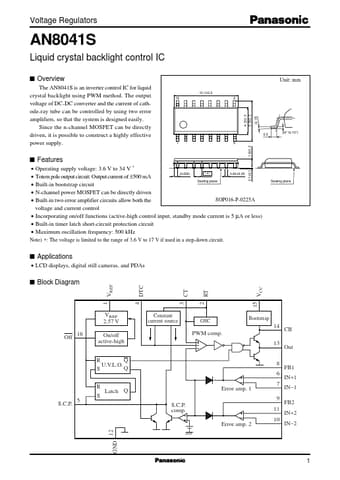

Preview of AN8041S PDF

Datasheet Details

Part number:

AN8041S

Manufacturer:

Panasonic Semiconductor

File Size:

153.08 KB

Description:

Liquid crystal backlight controller.
Voltage Regulators AN8041S Liquid crystal backlight control IC s Overview The AN8041S is an inverter control IC for liquid crystal backlight using PW.
