AN8049FHN - 1.8-volt 3-channel step-up/ step-down/ and polarity inverting DC-DC converter controller

Panasonic Semiconductor

The AN8049FHN by Panasonic Semiconductor is a 1.8-volt 3-channel step-up/ step-down/ and polarity inverting DC-DC converter controller. Below is the official datasheet preview.

📥 Download Datasheet

AN8049FHN 1.8-volt 3-channel step-up/ step-down/ and polarity inverting DC-DC converter controller by Panasonic Semiconductor - Datasheet Preview — Official preview page of the **AN8049FHN** 1.8-volt 3-channel step-up/ step-down/ and polarity inverting DC-DC converter controller datasheet (Panasonic Semiconductor).

Datasheet Details

Part number	AN8049FHN
Manufacturer	Panasonic Semiconductor
File Size	170.60 KB
Description	1.8-volt 3-channel step-up/ step-down/ and polarity inverting DC-DC converter controller
Datasheet	AN8049FHN_PanasonicSemiconductor.pdf

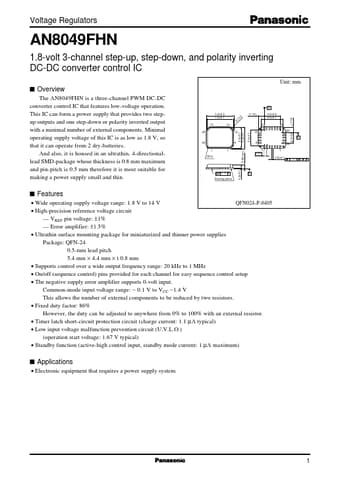

Additional preview pages of the AN8049FHN datasheet.

AN8049FHN Product details

Description

Pin No. 3 FB3 IN 2 FB2 IN 1 FB1 S.C.P. 2 AN8049FHN Symbol VCC VOFF VIN Rating 14.2 14.2 VCC 50 +50 111

Features

low-voltage operation. This IC can form a power supply that provides two stepup outputs and one step-down or polarity inverted output with a minimal number of external components. Minimal operating supply voltage of this IC is as low as 1.8 V, so that it can operate from 2 dry-batteries. And also, it is housed in an ultrathin, 4-directionallead SMD-package whose thickness is 0.8 mm maximum and pin-pitch is 0.5 mm therefore it is most suitable for making a power supply small and thin. A 5.2±0.2 5.
