AN8045M - 3-pin/ positive output/ low dropout voltage regulator

Name: AN8045M
SKU: AN8045M-182610

Panasonic Semiconductor

The AN8045M by Panasonic Semiconductor is a 3-pin/ positive output/ low dropout voltage regulator. Below is the official datasheet preview.

📥 Download Datasheet

AN8045M 3-pin/ positive output/ low dropout voltage regulator by Panasonic Semiconductor - Datasheet Preview — Official preview page of the **AN8045M** 3-pin/ positive output/ low dropout voltage regulator datasheet (Panasonic Semiconductor).

Datasheet Details

Part number	AN8045M
Manufacturer	Panasonic Semiconductor
File Size	159.18 KB
Description	3-pin/ positive output/ low dropout voltage regulator
Datasheet	AN8045M_PanasonicSemiconductor.pdf

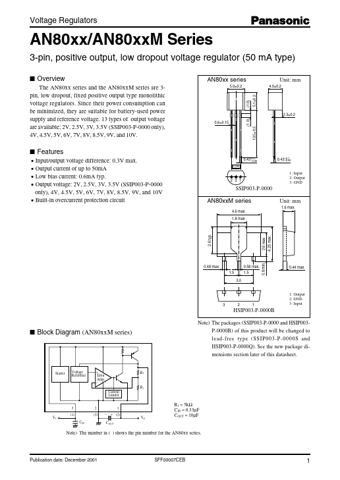

Additional preview pages of the AN8045M datasheet.

AN8045M Product details

Features

Input/output voltage difference: 0.3V max.
Output current of up to 50mA.
Low bias current: 0.6mA typ.
Output voltage: 2V, 2.5V, 3V, 3.5V (SSIP003-P-0000 only), 4V, 4.5V, 5V, 6V, 7V, 8V, 8.5V, 9V, and 10V.
Built-in overcurrent protection circuit 0.43+0.1.
0.05 2.54 0.43+0.1.
0.05 2 3 1 1: Input 2: Output 3: GND SSIP003-P-0000 AN80xxM series 4.6 max. 1.8 max. Unit: mm 1.6 max. 2.6 typ. 0.48 max. 1.5 3.0 0.58 max. 1.5 0.8 min.
