AN8140K Datasheet - Panasonic Semiconductor

AN8140K High-speed Low Power Consumption 10-bit D/A Converter

Pin No. Symbol 1 2 3 4 5 6 7 8 9 10 11 12 NC DGND AGND AGND OUT REFO REFI VIB COMP IREF AVCC AVCC Digital GND Analogue GND Analogue GND Analogue output Reference voltage output Reference voltage input Stabilized capacitive pin Compensation capacitive pin Reference current pin Analogue power supply .

AN8140K Features

* 10-bit resolution

* High speed : maximum conversion rate of 50MSPS

* Low power comsumption : 150mW

* TTL compatible input level

* Single 5V power supply

* Built-in reference power supply 1 2 3 4 5 6 7 8 9 10 11 12 6.2±0.3 24 23 22 21 20 19 18 17 16

AN8140K Datasheet (45.02 KB)

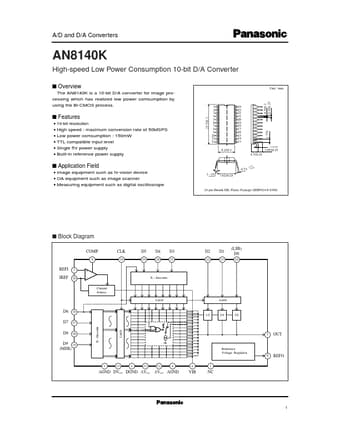

AN8140K Datasheet Preview — Preview of AN8140K PDF
