AN8353UB

High Efficiency Car Dashboard Dimmer

AN8353UB Features

* Low power consumption by pulse control

* External ON/OFF control by the standby pin

* Pulse frequency range : 50Hz to 10kHz

* Built-in overvoltage protective circuit approx. 20V

* Wide operating ambient temperature range :

* 40˚C to+100˚C

* Al

AN8353UB General Description

Pin No. 1 2 3 4 5 Output pin GND Input pin Noise eliminating capacity connection pin 1 Square wave output pin Pin name GND Applies a control voltage. Connect a capacitor to eliminator a noise. Output a triangular wave, which serves as a reference for the PWM signal, to the Pin6 by connecting the re.

AN8353UB Datasheet (50.00 KB)

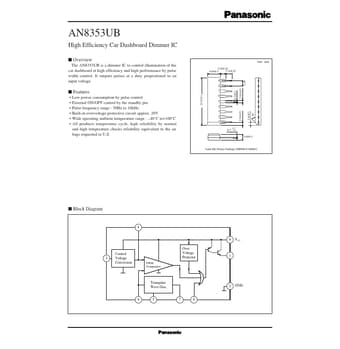

Preview of AN8353UB PDF

Datasheet Details

Part number:

AN8353UB

Manufacturer:

Panasonic Semiconductor

File Size:

50.00 KB

Description:

High efficiency car dashboard dimmer.
AN8353UB High Efficiency Car Dashboard Dimmer IC s Overview The AN8353UB is a dimmer IC to control illumination of the car dashboard at high efficienc.
