AN8377N Datasheet, Driver, Panasonic Semiconductor

AN8377N Features

  • Driver
  • Operating supply voltage range ; VCC=5.5V to 18V
  • Built-in 3 circuits of voltage BTL drivers 1 2 3 4 5 6 7 8 16 15 14 13 12 11 10 9 27.4±0.3 21.6±0.3 1.2±0.25 A

PDF File Details

Part number:

AN8377N

Manufacturer:

Panasonic Semiconductor

File Size:

50.75kb

Download:

📄 Datasheet

Description:

3-channel linear driver. (The following description applies when the 3 channels for the motor drivers 1, 2, and 3 are used.) Pin No. Symbol I/O DC Voltage (V

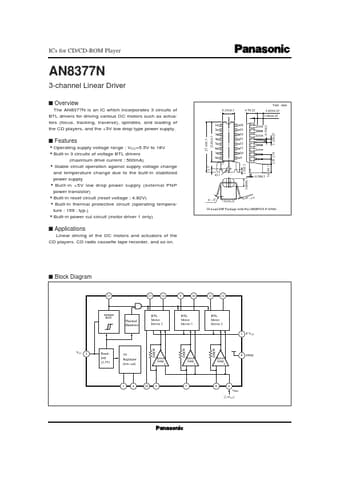

Datasheet Preview: AN8377N 📥 Download PDF (50.75kb)
Page 2 of AN8377N Page 3 of AN8377N

AN8377N Application

  • Applications Linear driving of the DC motors and actuators of the CD players, CD radio cassette tape recorder, and so on. s Block Diagram 15 13
