LNJ812R8DRA Datasheet - Panasonic Semiconductor

LNJ812R8DRA Surface Mounting Chip LED

Light Emitting Diodes This product complies with the RoHS Directive (EU 2002/95/EC). LNJ812R8DRA Surface Mounting Chip LED TSS Type Absolute Maximum Ratings Ta = 25°C Parameter Symbol Rating Power dissipation PD Forward current IF Pulse forward current IFP Reverse voltage VR Operating ambient temperature Topr Storage temperature Tstg Note) : The condition of IFP is duty 10%, Pulse width 1 msec. 50 20 60 3 30 to +85 40 to +100 Unit mW mA mA .

LNJ812R8DRA_PanasonicSemiconductor.pdf

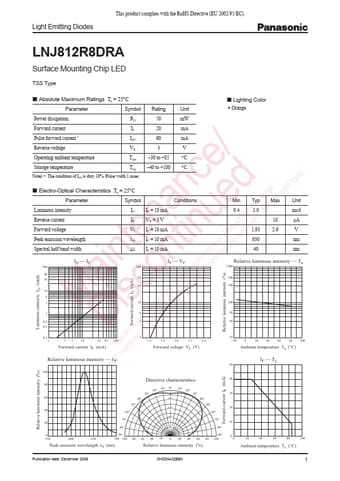

Preview of LNJ812R8DRA PDF
LNJ812R8DRA Datasheet Preview Page 2 LNJ812R8DRA Datasheet Preview Page 3

Datasheet Details

Part number:

LNJ812R8DRA

Manufacturer:

Panasonic Semiconductor

File Size:

292.15 KB

Description:

Surface mounting chip led.
