LNJ812R88RA Datasheet - Panasonic

LNJ812R88RA Hight Bright Surface Mounting Chip LED

LNJ812R88RA Hight Bright Surface Mounting Chip LED TSS Type Absolute Maximum Ratings Ta = 25°C Parameter Symbol Rating Power dissipation PD Forward current IF Pulse forward current IFP Reverse voltage VR Operating ambient temperature Topr Storage temperature Tstg Note) : The condition of IFP is duty 10%, Pulse width 1 msec. 55 20 60 4 30 to +85 40 to +100 Unit mW mA mA V °C °C Electro-Optical Characteristics Ta = 25°C Parameter Symbo.

LNJ812R88RA-Panasonic.pdf

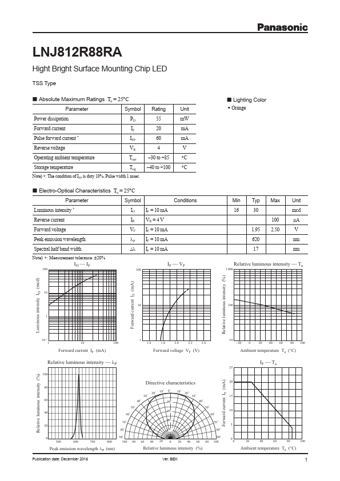

Preview of LNJ812R88RA PDF
LNJ812R88RA Datasheet Preview Page 2 LNJ812R88RA Datasheet Preview Page 3

Datasheet Details

Part number:

LNJ812R88RA

Manufacturer:

Panasonic

File Size:

288.80 KB

Description:

Hight bright surface mounting chip led.
