LNJ812R83RA Datasheet - Panasonic

LNJ812R83RA Ultra Hight Bright Surface Mounting Chip LED

Light Emitting Diodes LNJ812R83RA Ultra High Bright Surface Mounting Chip LED InGaAIP TSS Type Absolute Maximum Ratings Ta = 25°C Parameter Symbol Rating Power dissipation Forward current Pulse forward current Reverse voltage Operating ambient temperature Storage temperature PD 55 IF 20 IFP 60 VR 4 Topr 30 to +85 Tstg 40 to +100 Unit mW mA mA V °C °C Lighting Color / Lens Color Orange / Clear Electro-Optical Characteristics Ta = 25°C Para.

LNJ812R83RA-Panasonic.pdf

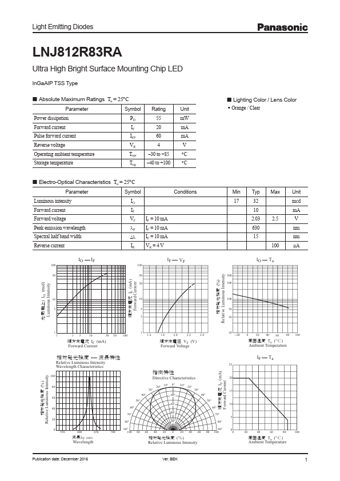

LNJ812R83RA Datasheet Preview — Preview of LNJ812R83RA PDF

LNJ812R83RA Datasheet Preview Page 2

LNJ812R83RA Datasheet Preview Page 3

Datasheet Details

Part number:

LNJ812R83RA

Manufacturer:

Panasonic

File Size:

259.55 KB

Description:

Ultra hight bright surface mounting chip led.
